Mixing Polyurethane Foam Spray Equipment / Accurate PU Coating Machine

Brand Name : RongXing

Model Number : RX350

Certification : CE

Place of Origin : Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, paypal,credit card

Supply Ability : 60 set/month

Delivery Time : 5-8 working days

Packaging Details : wooden case, Standard machine gross weight: 180KG, Packing zie:950*1100*1270mm

Product name : Polyurethane Foam Spray Equipment

Advantage : Accurate

SPEC : 380V/50HZ/60HZ/3-Phase or 220V/50HZ/60HZ/1-Phase

Heat power : 4500w*2

Pipeline insulation heating power : 3500W

Standard heated hose : 15M(MAX 90M)

Packing : wooden case

Contact Now

Mixing Polyurethane Foam Spray Equipment / Accurate Pu Coating Machine

Polyurethane Foam Spray Equipment Introuduction

Polyurethane Foam Spray Equipment is design for site-work, with accuracy measuring, even mixing, movable and portable structure and balance of cost and performance. The HP foam spraying machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose.

Specifications: 350	Polyurethane Foam Spray Equipment
The ratio of raw material	1:1
Viscosity range of raw material	200-2000CPS(under working temperature)
Max working pressure	20Mpa (200bar)
Max fluid temperature	80°C (176°F)
Heating Power	12.5KW
Max output	4-10kg/min (19.8 lb/min)
Heater power	4500W×2
Pipeline insulation heating power	3500W
Spray gun clean	Self-clean by air
Voltage (Optional)	1-ph 220V 50Hz or 3-ph 380V 50Hz
Pneumatic source	0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft)
Standard Configuration:
RX350 mainframe	1 set
P2 spray gun	1 pc
Transfer pump	2 pcs
Heated hose (Standard)	15m (50ft)
Max hose length (Optional)	90M
Transfer pump hose	2 pcs(1.5M*2)
Air pipe	1 set
Spare parts and tools	1 set
Transport Parameter:
Machine size:	850mm×950mm×1000mm
Package size (L×W×H)	95011001270mm
Net weight/Gross weight	115k/180kg

Polyurethane Foam Spray Equipment Use area:

Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

Remark:

1. This is new machine,Recruit distributors or exclusive agents in USA,Europe,CANADA,

South America. Welcome Contact!

Mixing Polyurethane Foam Spray Equipment / Accurate PU Coating Machine

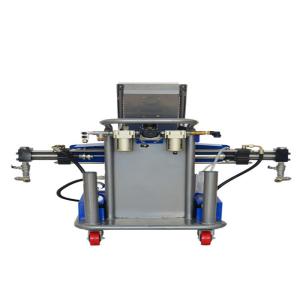

Mixing Polyurethane Foam Spray Equipment / Accurate PU Coating Machine Images
